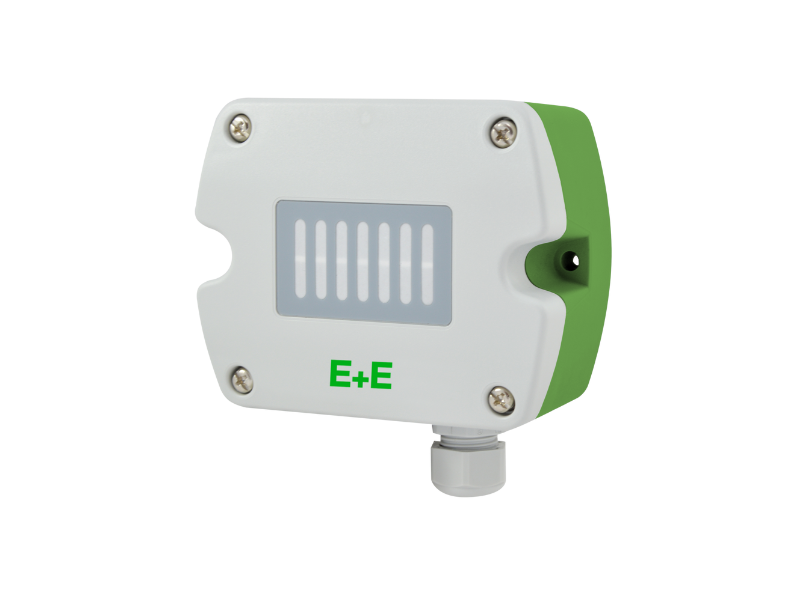

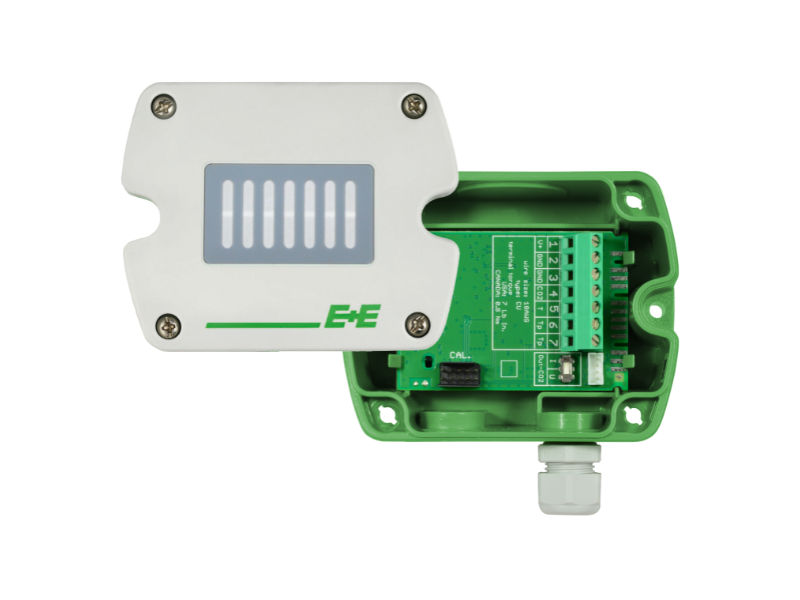

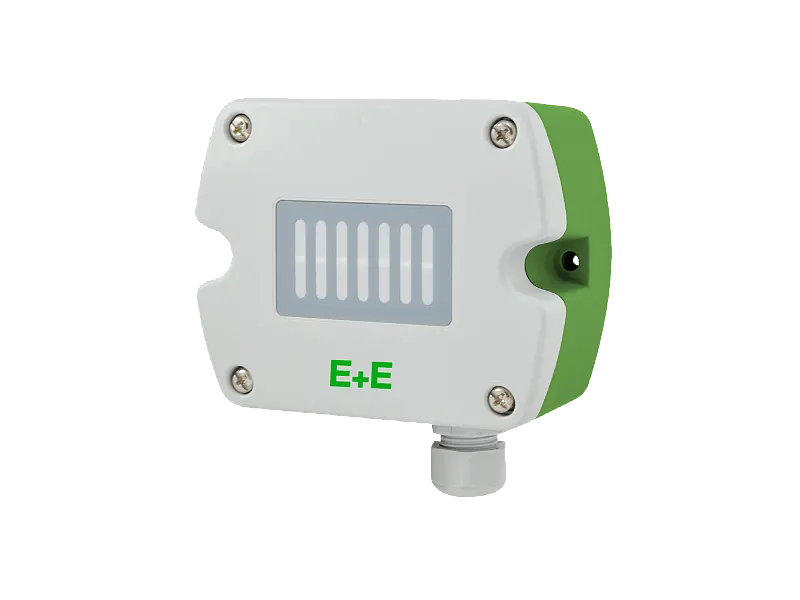

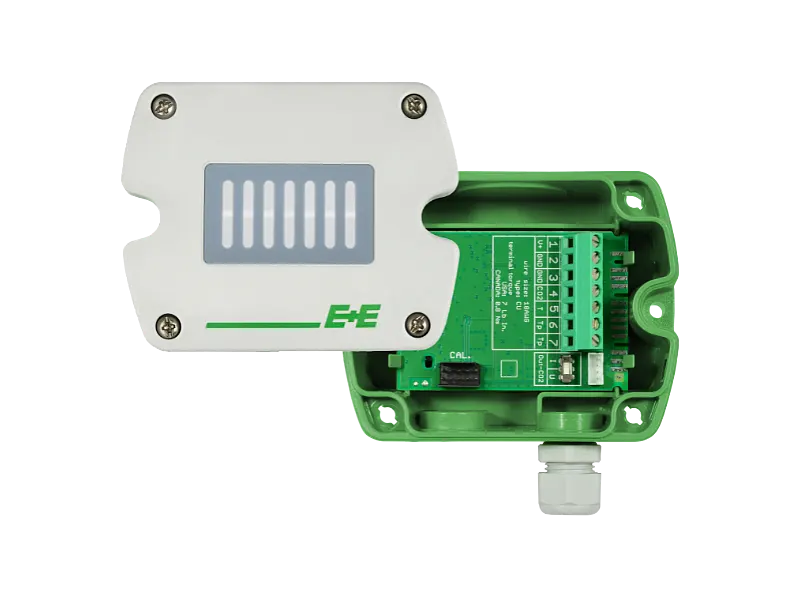

EE820

EE820是专为苛刻环境应用设计的一款高量程CO₂变送器。生产过程中特有的多点二氧化碳和温度校准步骤保证了变送器在整个温度工作范围测量的高精度。

苛刻环境用二氧化碳变送器

  • CO₂
  • Temperature

EE820采用的是E+E单光源双光速红外线测量技术,可自动进行光源老化补充,并具有较高的抗污染能力,从而保证了产品出众的长期稳定性。

配备的IP54防护等级的外壳和特殊的过滤器,使EE820可以应用在污染工况中,例如农业和畜牧业。在进行清洁操作前,使用M12接头可以方便地拆除变送器。

典型应用

  • 绿色大棚
  • 果蔬存储
  • 孵化器
  • 畜牧棚
如果您有任何问题,随时可以联系我们! 立即查询
  • E+E双光束测量技术
  • 测量范围最高达10000ppm
  • 自动校准功能使变送器保持出众的长期稳定性
  • 温度依赖性低
  • 抗污染能力高
  • 电压或电流输出
  • 安装简便
  • 用户校准
CO₂测量范围
0...2000 ppm0...5000 ppm0...10000 ppm
精度(在25 °C 和1013mbar时)
± (50ppm + 测量值的2%)± (50ppm + 测量值的3%)± (100ppm + 测量值的5%)
模拟输出
0-10V 或4-20mA
供电
24V DC
您想进一步了解我们的产品? 立即查询

FAQ

Not at all. Do not temper in any way with the CO₂ sensing cell. Please see the operation manual of the specific E+E CO₂ measurement device.

Please the section "Maintenance" in the operation manual.

All E+E CO₂ measuring devices feature an auto-calibration function. For details please refer to "Principles of CO₂ measurement".

Transmitter with "two-wire" technology receive the power from the process, and the signal is carried on return wire (closed current loop). With "three-wires" technology the power supply is separate from current output: 2 wires are the power supply and the third carries the signal.

如果您有任何问题,随时可以联系我们! 立即查询

下载 EE820

操作手册
Planning Data
软件
