EE354

可靠的露点监测对于降低冷冻式干燥设备压缩空气供应的成本至关重要。它可以更好地规划设备的维修间隔同时有效避免故障发生。

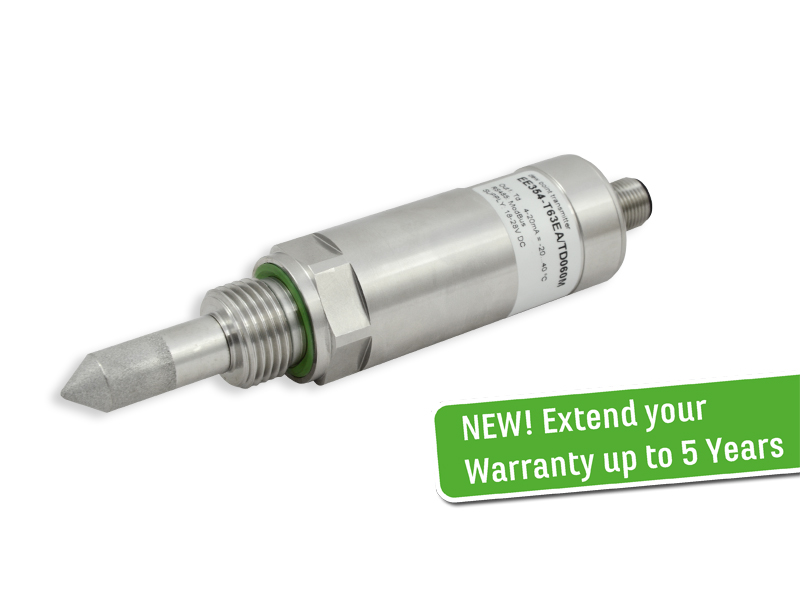

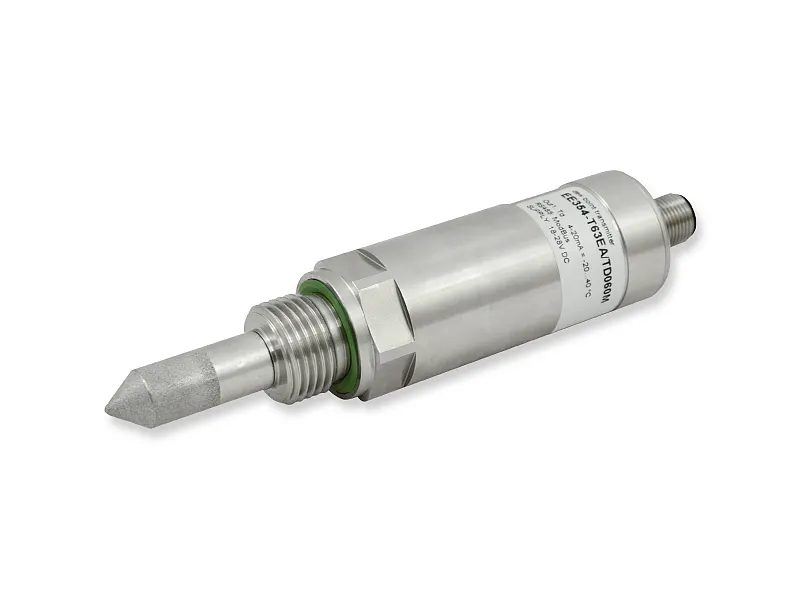

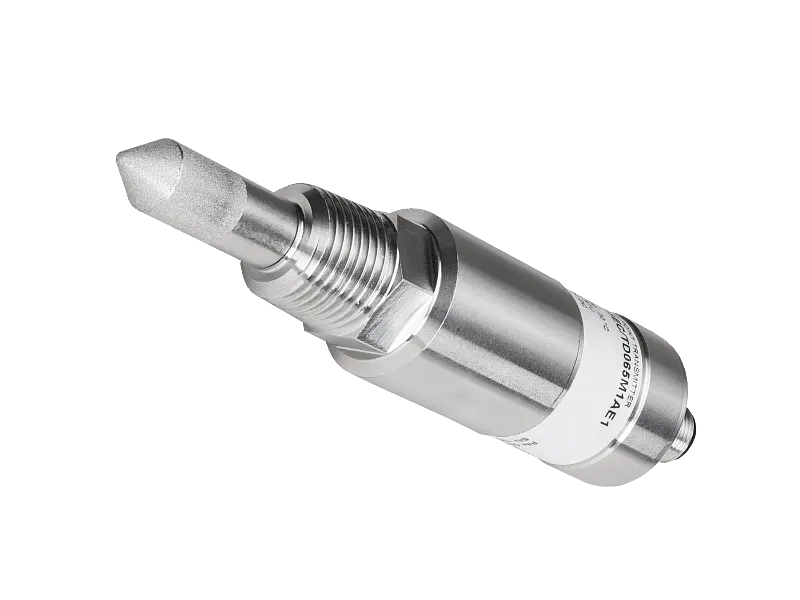

用于冷冻式干燥机的微型露点变送器

  • Service
  • Dew Point

EE354露点仪是一款专为监测冷冻式干燥设备的露点温度而开发的产品。其优越的长期稳定性及在-3...20℃的全量程范围内可保持±1℃的测量精度的特点,使得EE354成为冷冻式干燥设备的理想选择。

紧凑型的外壳设计使得EE354可以安装在狭窄、紧凑的空间中。坚固耐用的不锈钢外壳,带有½ISO或NPT螺纹和M12x1电气连接,便于快速轻松地集成到测量任务中。

典型应用

  • 压缩空气监控系统
  • 冷冻式干燥设备监测

EXTEND YOUR WARRANTY UP TO 5 YEARS WITH THE NEW
E+E CALIBRATION SERVICE PACKAGES

Our calibration service packages ensure that you are on the safe side when it comes to the accuracy and vailability of your measuring devices. Choose the right service package for your E+E product and benefit rom professional device service, calculable costs and excellent measuring accuracy in the long-term. Here you can find more detailed information.

如果您有任何问题,随时可以联系我们! 立即查询
  • 鲁甸测量范围-20...50 °C Td
  • 测量精度±1 °C(在 -3...20 °C Td时)
  • 模拟输出4...20 mA
  • MODBUS RTU数字接口
  • 耐压高达80 bar
测量范围
-20...50 °CTd
精度
± 1 °CTd
输出
Modbus RTU和4-20mA
供电
10-28V DC
您想进一步了解我们的产品? 立即查询

FAQ

Yes. It is possible.

EE354 / EE355 are “Sigma Compatible Probes”, for details pleas see the Sigma 05 user manual.

For operations with the Sigma 05, the EE354 / EE355 requires manual setup (see Sigma 05 user manual) and a cable connection adapter.

The cable connection adapter can be realized with the accessories HA010819 and HA010706.

Accredited calibration certificate for dew point temperature is available upon request, please see our calibration website.
