Humidity and Temperature Module for OEM Applications

  • Humidity
  • Temperature

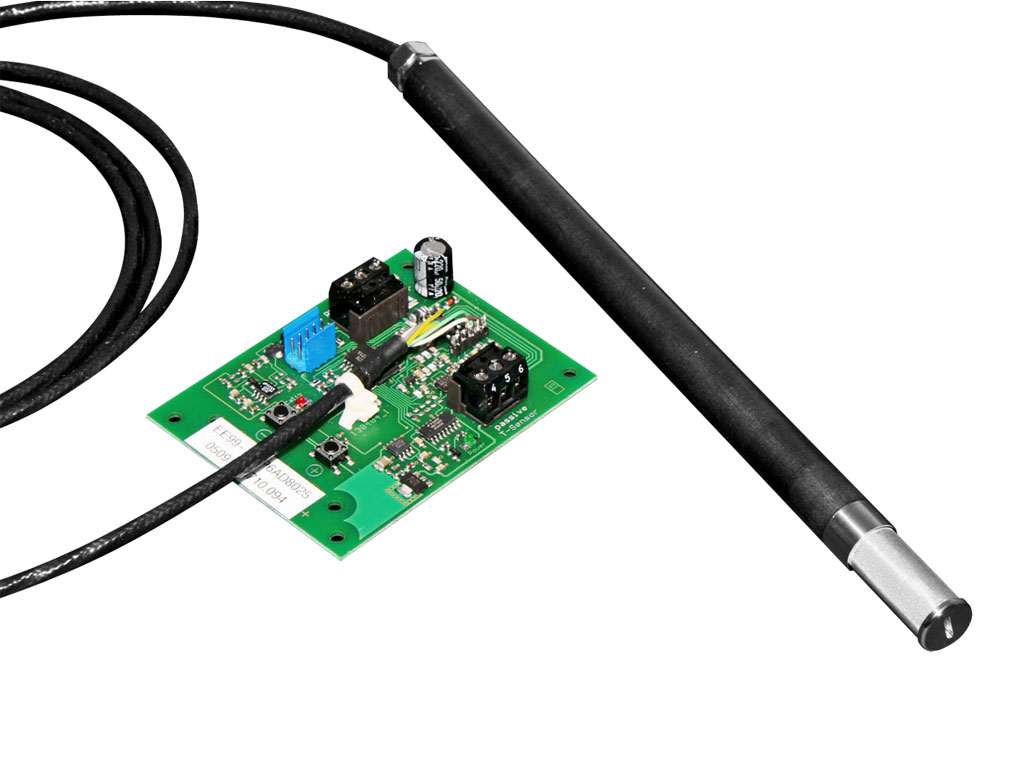

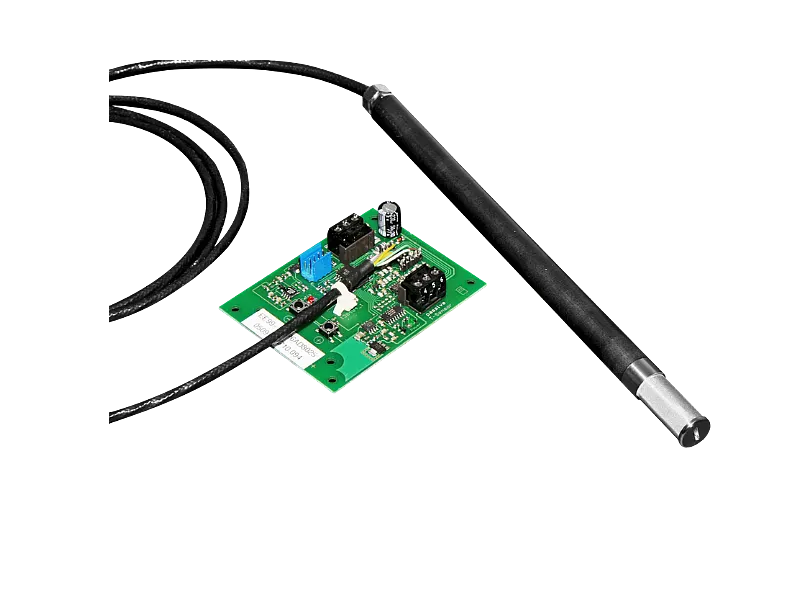

EE99-1

The EE99-1 employs high-end E+E humidity sensing elements manufactured in state-of-the-art thin film technology, which are the prerequisite for outstanding measurement accuracy.

With a working range from -50 °C (-94 °F) up to 180 °C (356 °F) and various probe and cable lengths the EE99-1 module is suitable for a wide range of applications.

The E+E proprietary coating protects the sensing elements against corrosive and electrically conductive pollution, which leads to excellent long-term stability even in harsh environment.

Applications

  • environmental chambers
  • climate chambers
  • test chambers
  • dryers and humidifiers
  • incubators

如果您有任何问题,随时可以联系我们! 立即查询
  • highest measurement accuracy
  • wide working range
  • outstanding long term stability
  • E+E proprietary coating against pollution and corrosion
  • passive temperature sensor
  • remote sensing probe up to 10m
  • easy field calibration/adjustment
  • easy installation and service
Measuring range
0...100% RH-50...180°C (-58...356°F), short term up to 200°C (392°F)
Accuracy
±1.3% RHT-passive (Pt100 DIN A or Pt1000 DIN A)
Outputs
RH: 4-20mA (3-wire)T: passive (3-wire connection)
Supply
10-35V DC or10-28V AC
您想进一步了解我们的产品? 立即查询

为精密的测量结果定制解决方案

40 多年来,E+E Elektronik 一直在其位于奥地利恩格维茨多夫的总部研发和制造高精度和具有长期稳定性的传感器。从敏感元件到精密的校准测量设备,益加义公司高度垂直化的生产管理体系,不仅有效保证了其产品符合高质量标准,而且能够响应客户的特定要求。

此外,E+E Elektronik还提供:

  • 符合高质量标准认证体系的传感器校准
  • 高效服务——通过全球各国当地子公司提供服务
  • 快速的交货时间
关于E+E的更多信息
E+E Elektronik总部
E+E Elektronik 总部,奥地利恩格维茨多夫

FAQ

Transmitter with "two-wire" technology receive the power from the process, and the signal is carried on return wire (closed current loop). With "three-wires" technology the power supply is separate from current output: 2 wires are the power supply and the third carries the signal.
