EE431

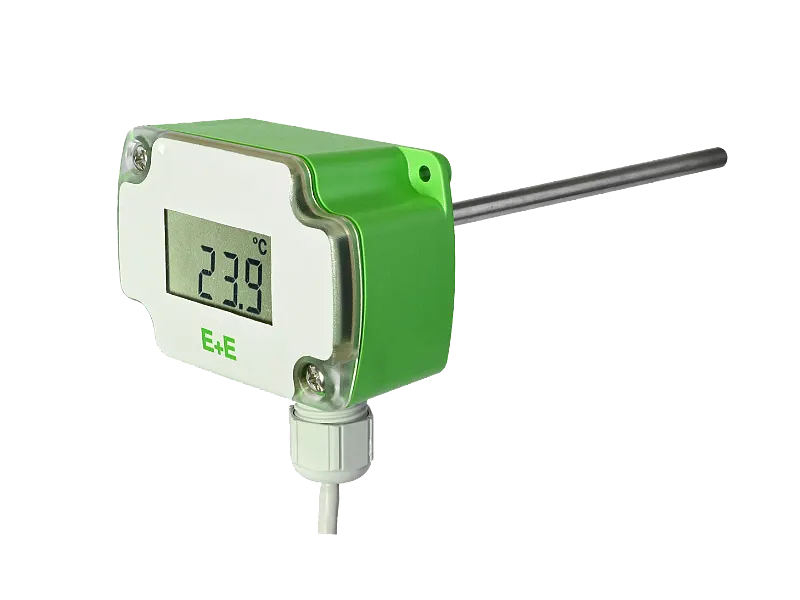

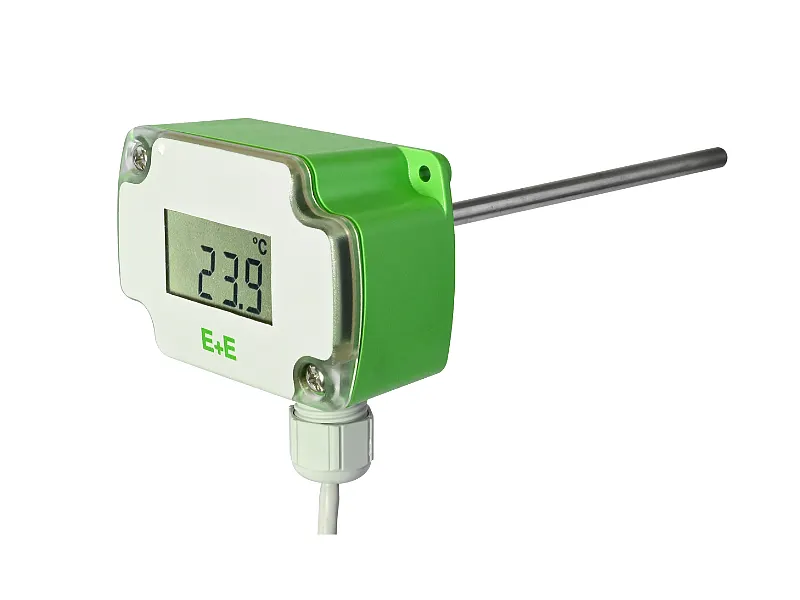

EE431可精密测量楼宇自动化、HVAC和过程控制中的气体或液体温度。

可提供电压或电流模拟信号输出,以及Modbus RTU或协议的RS485数字串口输出。另可提供各种类型的温敏元件被动信号输出。

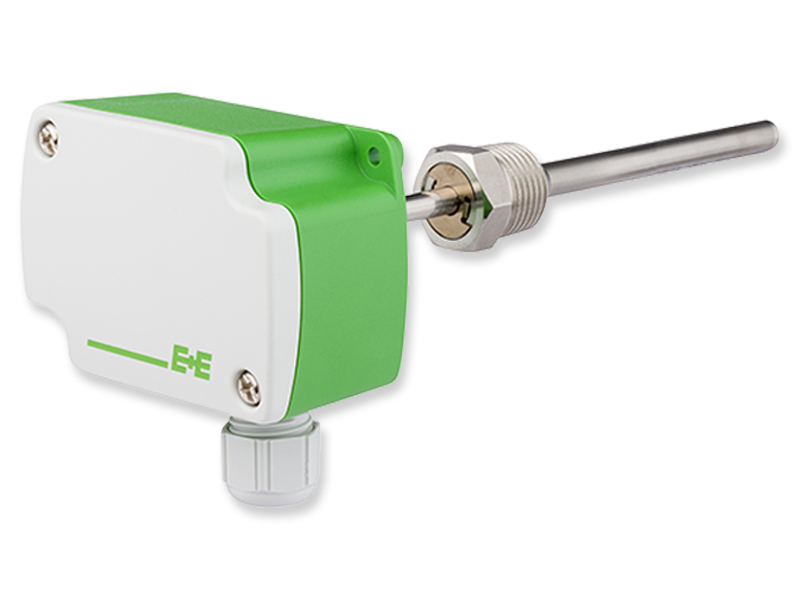

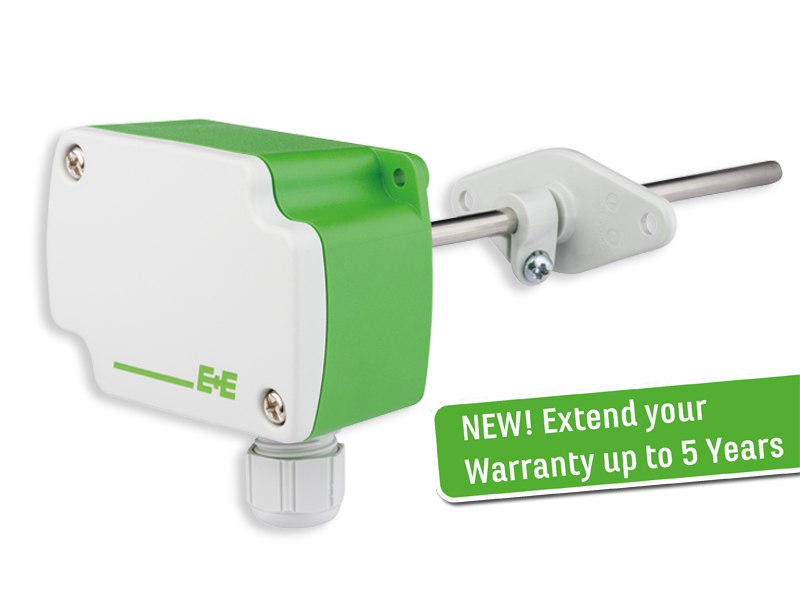

风管型可利用塑料安装法兰或外壳上的外部安装孔来安装固定。水管型配置特殊的安装套管,可实现变送器在水管上的快速和安全拆装。利用RS485串口可进行组态连接。

利用适配器(选项)和免费的EE-PCS配置软件,可对EE431进行设置和校准。

外壳

  • IP65 / NEMA4
  • 外部安装孔
  • 防脱落快装螺丝

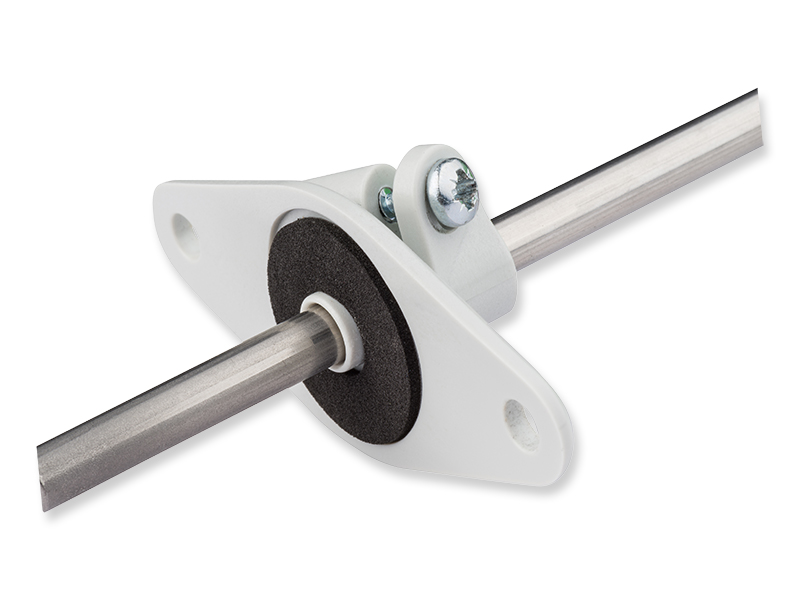

安装法兰

  • 夹紧环
  • 特殊密封

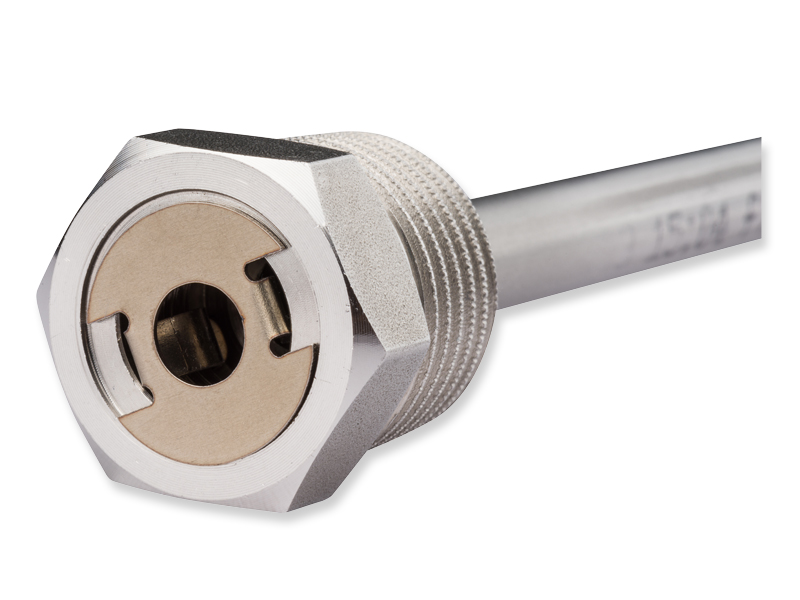

安装套管

  • 新型的安装夹簧

EXTEND YOUR WARRANTY UP TO 5 YEARS WITH THE NEW
E+E CALIBRATION SERVICE PACKAGES

Our calibration service packages ensure that you are on the safe side when it comes to the accuracy and vailability of your measuring devices. Choose the right service package for your E+E product and benefit rom professional device service, calculable costs and excellent measuring accuracy in the long-term. Here you can find more detailed information.

如果您有任何问题,随时可以联系我们! 立即查询
工作温度 -40...110 °C (-40...230 °F)§浸入式传感器: -40...150 °C (-40...302 °F)§电子设备: -40...70°C (-40...158°F)
主动输出精度
±0.1 °C (±0.18 °F)
模拟输出
0-10 V 或 4-20 mA
数字接口
RS485,带 Modbus RTU
防护等级
IP65 / NEMA 4X
电源
24 V AC/DC
您想进一步了解我们的产品? 立即查询

FAQ

Transmitter with "two-wire" technology receive the power from the process, and the signal is carried on return wire (closed current loop). With "three-wires" technology the power supply is separate from current output: 2 wires are the power supply and the third carries the signal.
