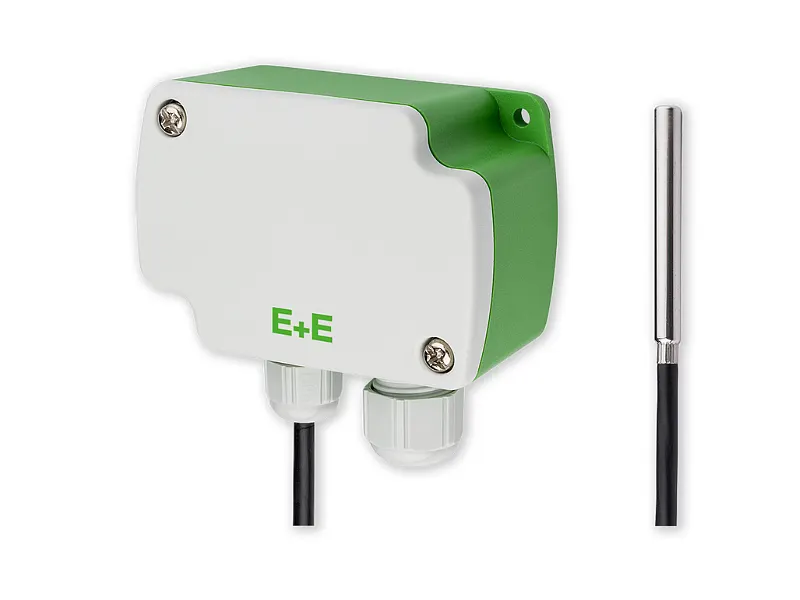

EE471

EE471可精密测量受限空间等应用环境的温度,适用于楼宇自动化、HVAC和过程控制。

可提供电压或电流模拟信号输出,以及Modbus RTU或协议的RS485数字串口输出。另可提供各种类型的温敏元件被动信号输出。

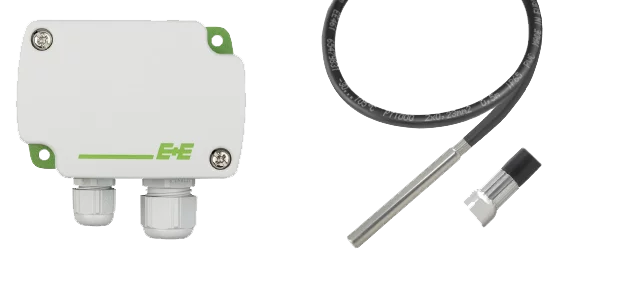

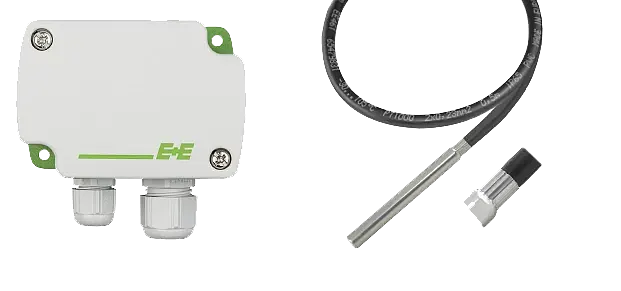

分体探头的设计适用于电子元件无法耐受的高温或剧烈震动环境的安装。利用新型的安装套管可测量液体温度。

利用适配器(选项)和免费的EE-PCS配置软件,可对EE471进行设置和校准.

外壳

  • IP65 / NEMA4
  • 外部安装孔
  • 防脱落快装螺丝
  • 探头电缆上印有产品的详细信息
  • 电缆接口处防护等级高达IP67 (星形压制的传感器套筒)

EXTEND YOUR WARRANTY UP TO 5 YEARS WITH THE NEW
E+E CALIBRATION SERVICE PACKAGES

Our calibration service packages ensure that you are on the safe side when it comes to the accuracy and vailability of your measuring devices. Choose the right service package for your E+E product and benefit rom professional device service, calculable costs and excellent measuring accuracy in the long-term. Here you can find more detailed information.

如果您有任何问题,随时可以联系我们! 立即查询
工作温度:远程探头 -30...105 °C (-22...221 °F)§电子设备: -30...70 °C (-22...158 °F)
有源输出精度
±0.3 °C (±0.54 °F)
模拟输出
0-10 V 或 4-20 mA
数字接口
RS485,带 Modbus RTU
防护等级
IP65 / NEMA 4
电源
24 V AC/DC
您想进一步了解我们的产品? 立即查询

FAQ

Transmitter with "two-wire" technology receive the power from the process, and the signal is carried on return wire (closed current loop). With "three-wires" technology the power supply is separate from current output: 2 wires are the power supply and the third carries the signal.
