CO₂ Sensor for Demanding Applications

  • CO₂
  • Temperature

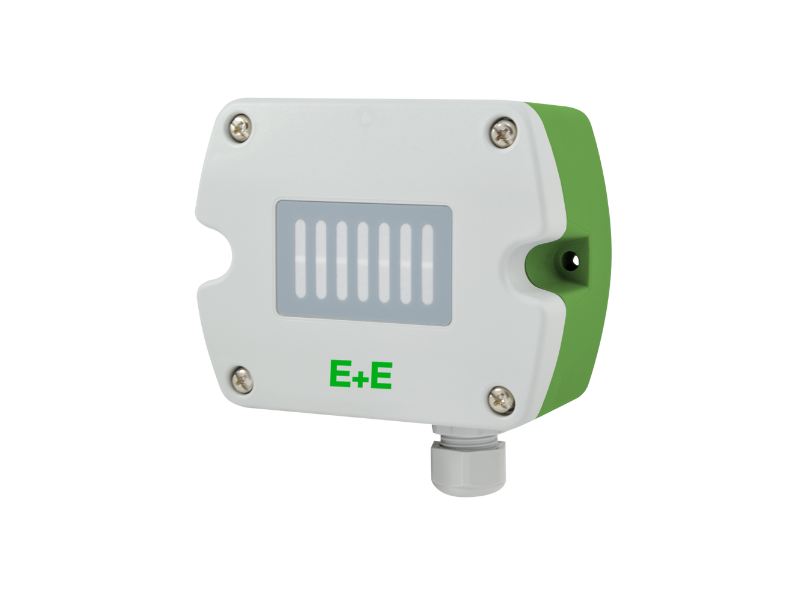

EE820

The EE820 measures reliably CO₂ concentration in harsh, demanding applications. A multipoint CO₂ and temperature factory adjustment leads to excellent accuracy over the entire temperature working range.

The EE820 incorporates the E+E dual wavelength NDIR CO₂ sensor, which compensates for ageing effects, is highly insensitive to pollution and offers outstanding long term stability.

With its robust, functional IP54 enclosure and a special filter, the EE820 is suitable for polluted applications such as agriculture and livestock barns. The M12 connector facilitates the removal of the device before site cleaning operations. An optional kit allows for easy configuration and adjustment of the EE820.

Typical Applications

  • Greenhouses
  • Fruit and vegetable storage
  • Hatchers and incubators
  • Life stock barns
We are always available to answer any questions you may have! Inquire now
  • E+E dual wavelength NDIR working principle
  • Measuring range up to 10,000 ppm
  • Auto-calibration for excellent long term stability
  • Very low temperature dependency
  • Highly insensitive to pollution
  • Voltage or current output
  • Fast and easy installation
  • Easy user configuration and adjustment
Measuring range CO₂
0...2000 ppm0...5000 ppm0...10000 ppm
Accuracy CO₂ at 25 °C (77 °F) and 1013 mbar (14.7 psi)
± (50ppm + 2% of measuring value)± (50ppm + 3% of measuring value)± (100ppm + 5% of measuring value)
Output analogue
0-10 V or 4-20 mA
Supply
24V AC/DC
You want to know more about our products? Inquire now

FAQ

Not at all. Do not temper in any way with the CO₂ sensing cell. Please see the operation manual of the specific E+E CO₂ measurement device.

Please the section "Maintenance" in the operation manual.

All E+E CO₂ measuring devices feature an auto-calibration function. For details please refer to "Principles of CO₂ measurement".

Transmitter with "two-wire" technology receive the power from the process, and the signal is carried on return wire (closed current loop). With "three-wires" technology the power supply is separate from current output: 2 wires are the power supply and the third carries the signal.
