CO₂ and Temperature Sensor for Duct Mounting

  • Humidity
  • Temperature
  • CO₂

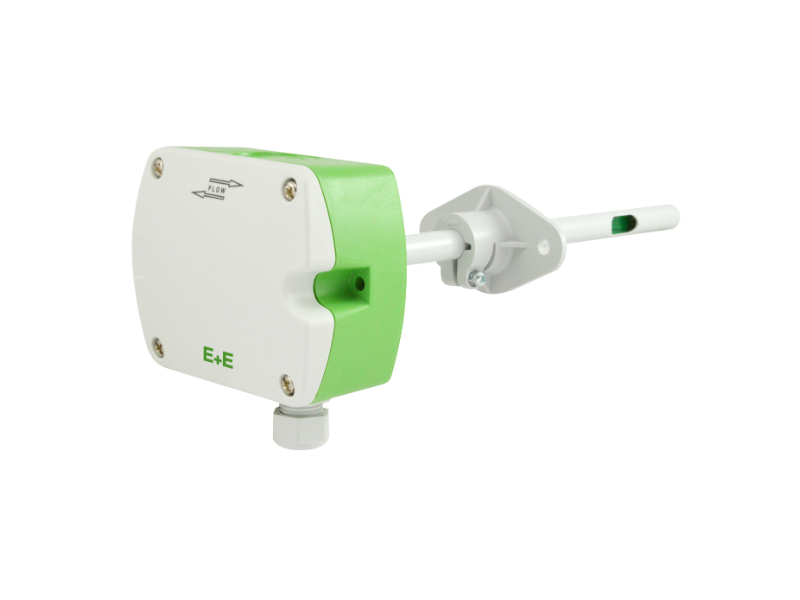

EE850

The EE850 combines CO2 and temperature (T) measurement in an innovative enclosure. It is ideal for demand controlled ventilation and building automation. With a CO2 measuring range of up to 10 000 ppm and a T working range of -20...+60 °C (-4...+140 °F), the EE850 can be employed also in demanding climate and process control applications. The EE850 incorporates the E+E dual wavelength NDIR CO2 sensor, which compensates for ageing effects, is highly insensitive to pollution and offers outstanding long term stability.

The multi-point CO₂ and temperature factory adjustment leads to an excellent CO₂ measurement accuracy over the entire temperature working range.

An optional adapter facilitates easy configuration and adjustment via the EE850 service interface.

Typical Applications

  • Building automation
  • Demand controlled ventilation
  • Process control
We are always available to answer any questions you may have! Inquire now
  • E+E dual wavelength NDIR CO₂ working principle
  • CO₂ auto-calibration for excellent long term stability
  • Temperature compensation of the CO₂ measurement
  • High insensitivity to pollution
  • Protected by the E+E proprietary coating
  • Voltage or current outputs
  • Modbus RTU
  • Optional passive temperature sensor
  • Fast and easy installation
  • Easy user configuration and adjustment
Measuring range CO₂
0...2000 ppm0...10000 ppm
Accuracy CO₂ - *mv - measured value
< ± (50 ppm +2% of mv*)< ± (100 ppm +5% of mv*)
Measuring range Temperature
-20...60 °C (-4...140 °F)
Accuracy Temperature
±0.3 °C (±0.54 °F)
Output analogue
0-5 / 10 V or 4-20 mA
Output digital
Modbus RTU
Supply
24 V AC/DC
You want to know more about our products? Inquire now

FAQ

Transmitter with "two-wire" technology receive the power from the process, and the signal is carried on return wire (closed current loop). With "three-wires" technology the power supply is separate from current output: 2 wires are the power supply and the third carries the signal.

All E+E CO₂ measuring devices feature an auto-calibration function. For details please refer to "Principles of CO₂ measurement".
