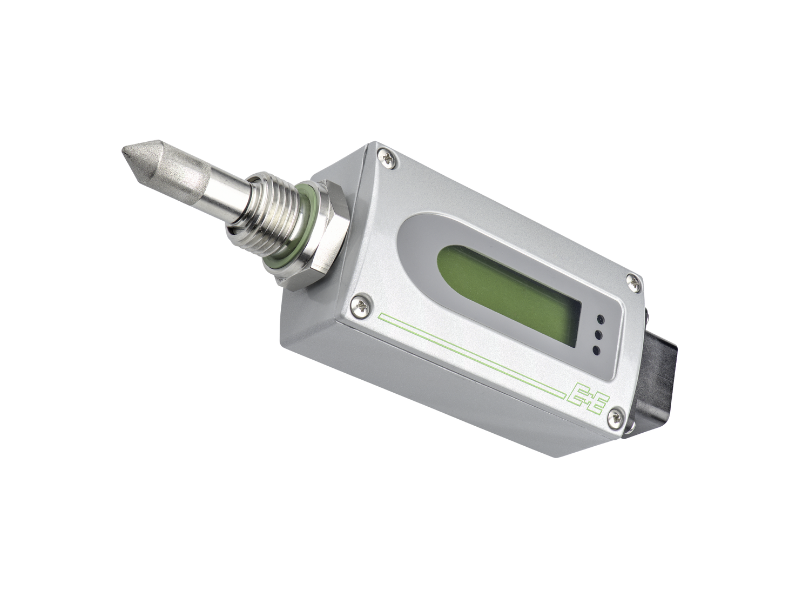

The EE371 features the innovative, monolithic E+E HMC01 humidity and temperature sensing element. In combination with a sophisticated auto-calibration procedure, this leads to accuracy better than ±2°C Td (±3.6 °F Td) and to excellent long term stability.
The robust metal enclosure, the swirling front-end, various process connections and sampling options allow for easy and comfortable design-in, mounting and operation. The measured data is available on two freely configurable voltage or current outputs as well as on the LCD display.
An optional adapter and the free EE-PCS Product Configuration Software facilitate easy configuration and adjustment of the EE371.
- Accuracy ±2°C Td (±3.6 °F Td)
- Auto-calibration
- Pressure rating up to 100 bar (1450 psi)
- 360° swirling front-end
- Measuring range
- -60...60 °C (-76...140 °F) Td
- Accuracy
- ±2 °C (±3.6 °F) Td
- Outputs
- 0-1/5/10 V or 0/4-20 mA
- Supply
- 15-30 V DC
FAQ
Low dew point means the difference between the ambient temperature and the dew point temperature is higher than 40 °C (104 °F). This corresponds to RH <5%.
The appropriate products are the EE371 and EE355. Both devices feature an auto-calibration procedure.
Auto-calibration is used by EE371 and EE355.
Accredited calibration certificate for dew point temperature is available upon request, please see our calibration website.
Downloads EE371
