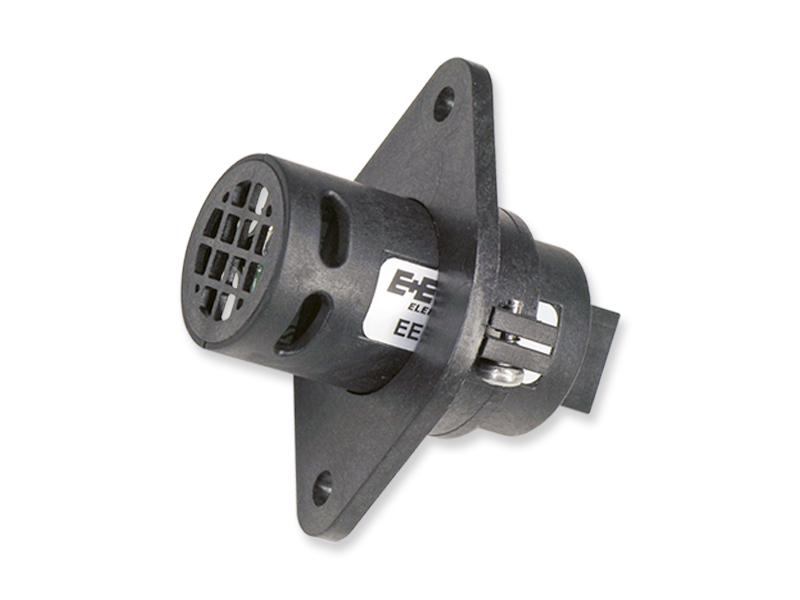

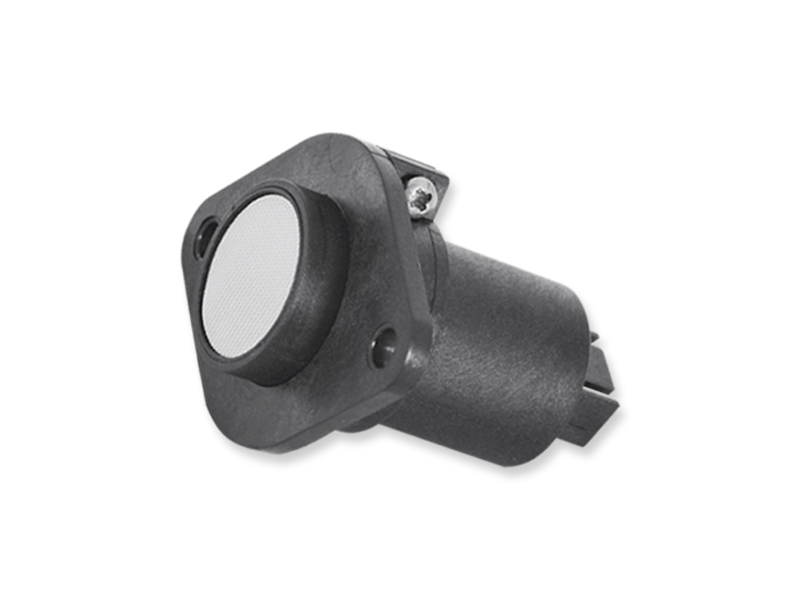

OEM Humidity and Temperature Sensor
EE040
The compact EE040 humidity and temperature sensor offers high accuracy and long term stability at an outstanding price / performance ratio.
EE040 is dedicated for cost effective measurement of the relative humidity (RH) and temperature (T) in OEM applications.
The proprietary E+E coating protects the RH sensor against dirt, dust and corrosion, which leads to excellent long-term stability even in polluted environment.
The measured data is available on two analogue voltage EE040 outputs.
The design of the probe, the plug connection and the mounting flange included in the scope of supply facilitate the design-in, installation and replacement.
- Measuring range
- 0...100% RH, non condensing-40...85 °C (-40...185 °F)
- Accuracy
- ±3% RH±0.3 °C (±0.54 °F)
- Output signal
- 0 - 2.5 V
- Supply
- 5V DC
Custom solutions for precise results
For more than 40 years, E+E Elektronik has been developing and manufacturing its highly precise and long-term stable sensors exclusively at its headquarters in Engerwitzdorf, Austria. The high level of vertical integration – from the sensor element to the precisely calibrated measuring device – ensures compliance with the highest quality standards and enables a quick response to customer-specific requirements.
E+E Elektronik offers:
- Accredited sensor calibration for the highest quality standards
- Efficient service – worldwide through local offices
- Short delivery times
