Humidity and Temperature Sensor for Building Automation

  • Humidity
  • Temperature

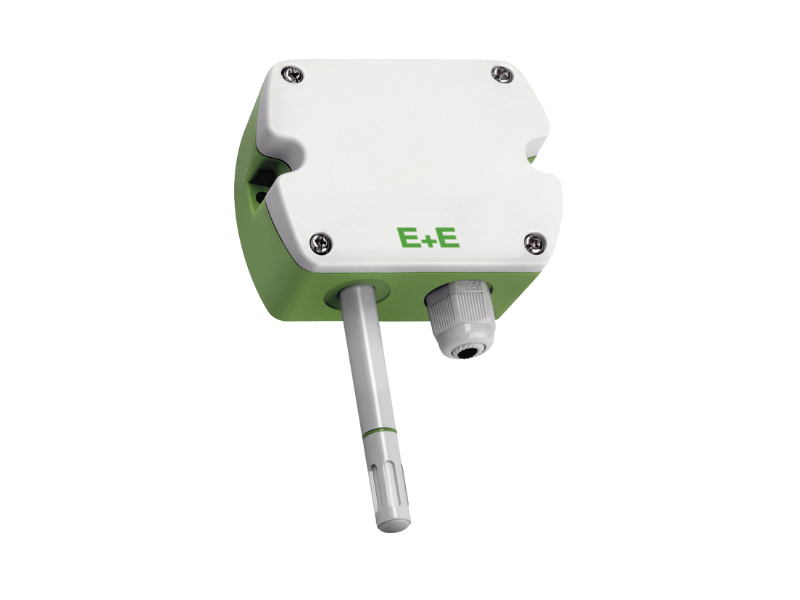

EE160

Specially designed for HVAC, the EE160 by E+E Elektronik is a cost-effective, highly accurate transmitter for relative humidity and temperature.

With encapsulated measurement electronics inside the sensing probe and E+E proprietary coating protection of the humidity sensor element, EE160 offer outstanding long term stability and reliability.

Typical Applications

  • Heating, ventilation and air conditioning
  • Storage rooms
We are always available to answer any questions you may have! Inquire now
  • Wall and duct mount versions
  • Voltage and current outputs freely configurable and scaleable
  • Certified Modbus RTU user configurable
  • Optional passive temperature output
  • Temperature compensation
  • Protection against condensation and pollution
  • Robust sensing head
  • Easy mounting
  • RH and T adjustable by the user
  • Free configuration software
Measuring range
0...100% RH-40...60 °C (-40...140 °F)
Accuracy
±2.5% RH±0.3 °C (±0.54 °F)
Analogue outputs
0-10V or 4-20mA
Digital output
Modbus RTU
Passive T-ouptut
optional
Supply
24V AC/DC
You want to know more about our products? Inquire now

FAQ

Since upgrading the sensing element of the EE160 from HCT01 to the new ASIC based RH/T sensing element there is no longer a microcontroller in the product. The only serial number readable via PCS 10 is that of the ASIC. The serial number on the product label is the one used to identify the main PCB.

Transmitter with "two-wire" technology receive the power from the process, and the signal is carried on return wire (closed current loop). With "three-wires" technology the power supply is separate from current output: 2 wires are the power supply and the third carries the signal.

We are always available to answer any questions you may have! Inquire now

Downloads EE160

Software
Planning Data
