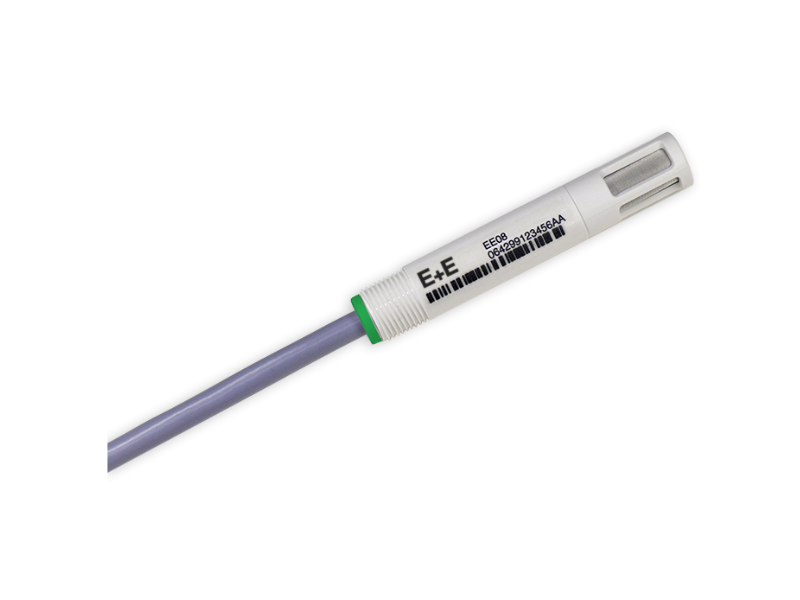

High-Precision Miniature Humidity and Temperature Probe

  • Humidity
  • Temperature

EE08

The EE08 reliably measures the relative humidity (RH) and the temperature (T) in indoor and outdoor applications. Outstanding temperature compensation leads to excellent accuracy over the wide working range of 0...100 %RH and -40...+80 °C (-40...176 °F).

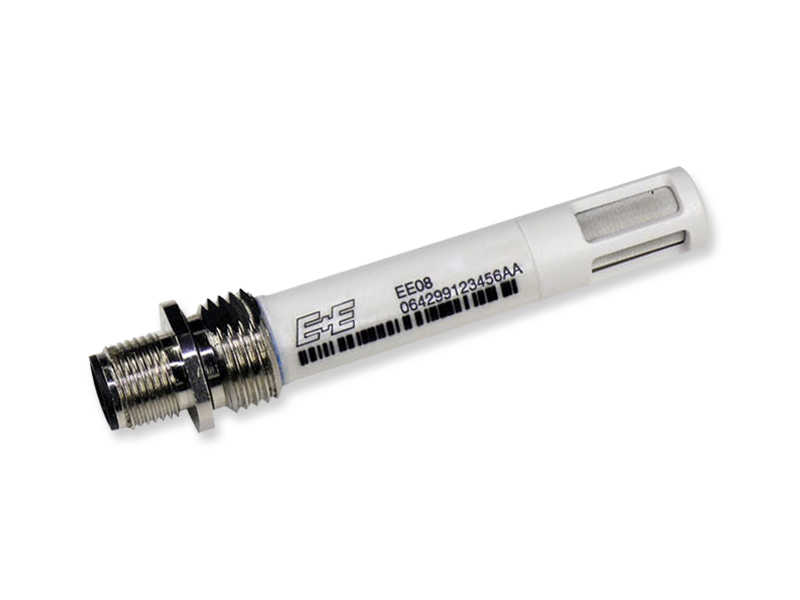

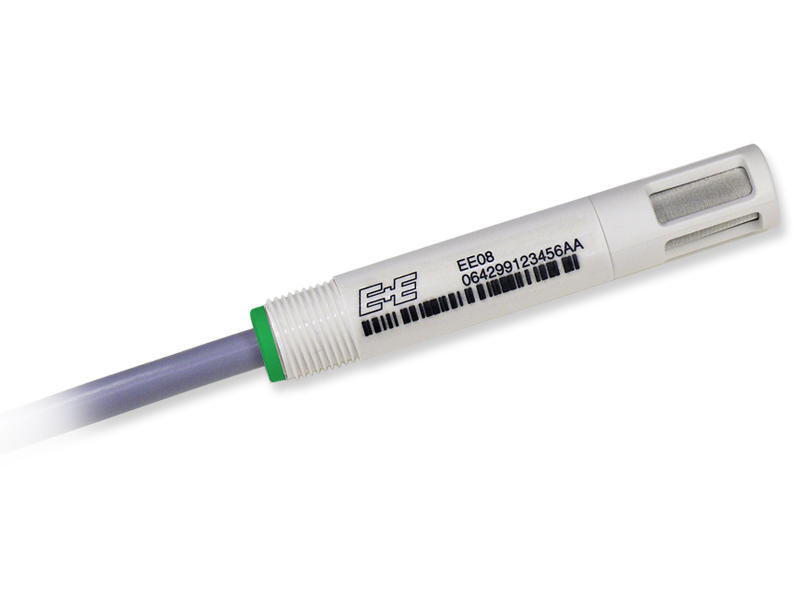

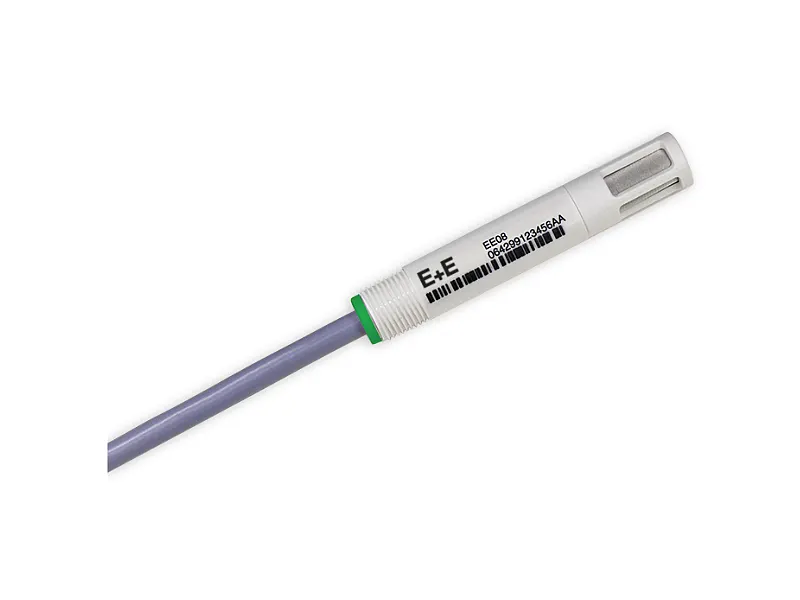

The probe has both analogue and digital outputs and is available with either cable or M12 connector. It is possible to choose between active and passive temperature measurement.

The probe is easily installed and dismounted thanks to the M12 thread. Low power consumption and short start-up time make the EE08 ideal for battery operated systems.

For meteorology and other outdoor applications, the EE08 can be used with the optional radiation shield.

With an optional confugration kit, it is possible to adjust the humidity and temperature reading and set up the analogue outputs.

Typical Applications

  • Meteorology, weather stations
  • Hatcheries and incubators
  • Climatic chambers
  • Green houses, storage rooms
  • Artificial snow machines
  • Battery operated devices
We are always available to answer any questions you may have! Inquire now
  • Highest measurement accuracy
  • Outstanding long term stability
  • Wide working temperature range
  • Compact and easily interchangeable
  • Low power consumption
  • Short start-up time
  • Adjustment and outputs setup by the user
Measuring range
0...100% RH-40...80 °C (-40...176 °F)
Accuracy
±2% RH±0.2 °C (±0.36 °F)
Outputs
analogue and E2 digital (2-wire)
Supply
4.5-15V or 7-30V DC
EE08 - High-Precision Miniature Humidity and Temperature Probe
