Humidity and Temperature Sensor for Industrial Applications

  • Humidity
  • Temperature

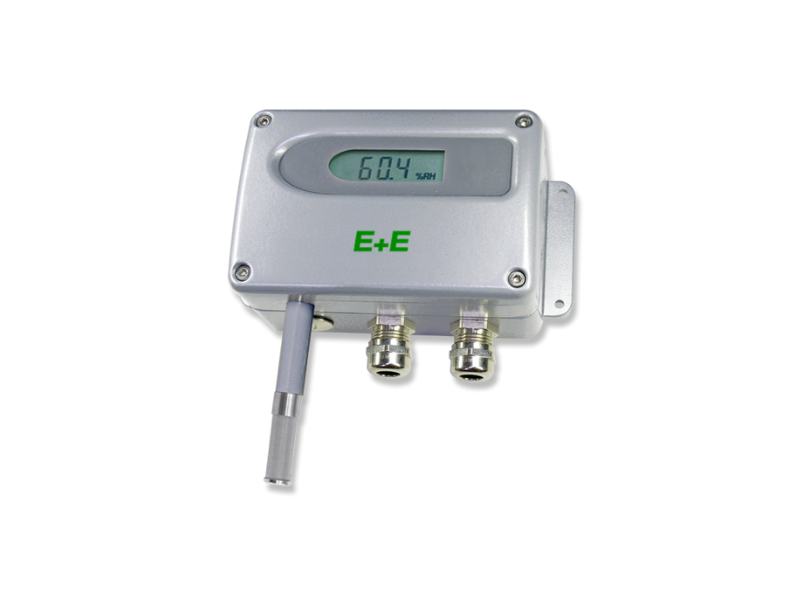

EE23

The EE23 is a cost optimised, reliable sensor for industrial and high-end climate control applications in the range -40...180 °C (-40...356 °F). It measures accurately relative humidity (RH) and temperature (T) and calculates the dew point (Td) and the frost point (Tf).

EE23 is available for wall or duct mount, with remote probe, as well as with miniature remote probe. The modular enclosure facilitates mounting, wiring, replacement and maintenance.

The measured data is available on two analogue outputs, an alarm output and on the LCD display. The E+E proprietary coating protects the sensing elements against corrosive and electrically conductive pollution.

EE23 is user configurable and adjustable with push buttons on the electronics board or via software.

Typical Applications

  • Industrial process control
  • High-end climate control
We are always available to answer any questions you may have! Inquire now
  • Temperature range -40...180 °C (-40...356 °F)
  • Analogue and alarm outputs
  • IP65 / NEMA 4 modular enclosure in polycarbonate or aluminum
  • LCD display
  • Integrated power supply unit 100...240 V AC, 50/60Hz
  • Sensor coating for polluted environments
  • Wide choice of filter caps
  • User configurable and adjustable
Measuring range
0...100% RH-40...180 °C (-40...356°F)
Accuracy
±1.3% RH±0.2 °C (±0.36 °F)
Outputs
0-5/10 V, 0/4-20 mA
Supply
24 V AC/DC

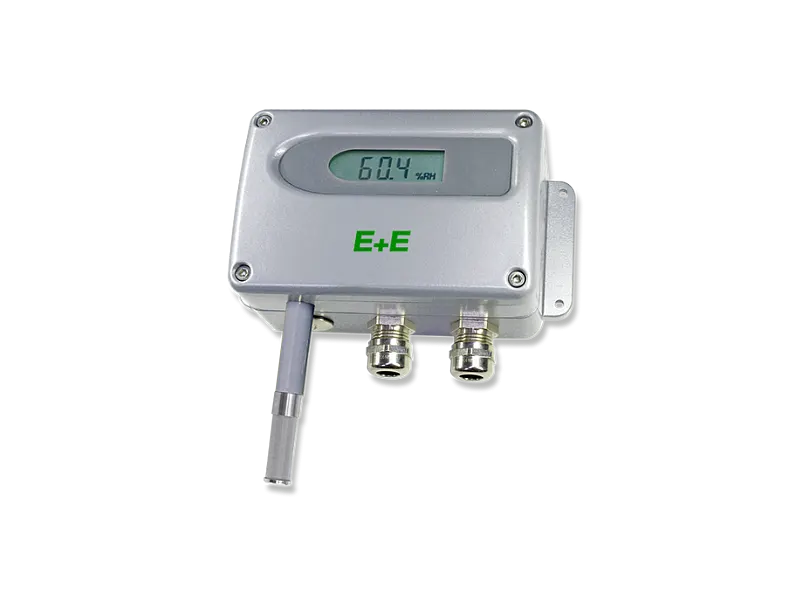

EE23 Humidity and Temperature Sensor  for Industrial Applications
