Duct and Immersion Temperature Sensor

  • Service
  • Temperature

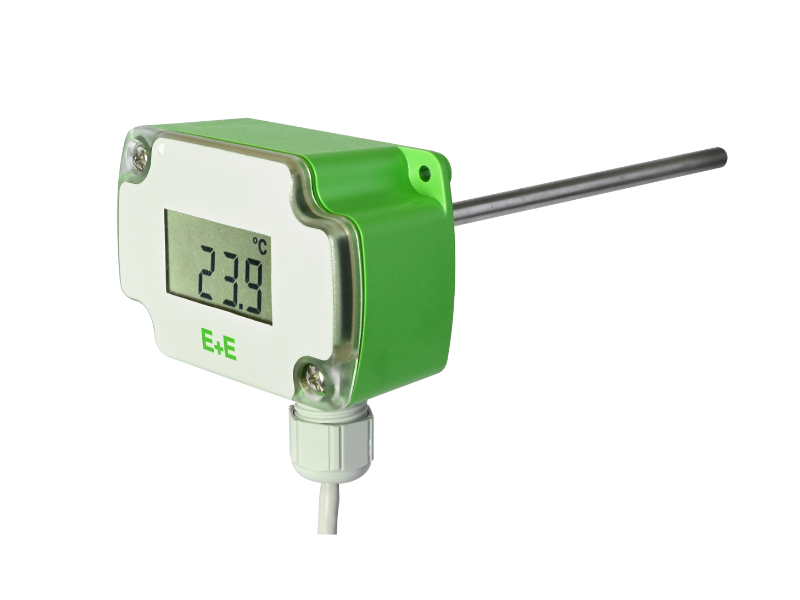

EE431

The EE431 duct and immersion sensor reliably measures the temperature (T) in air and liquids and is optimized for building automation, HVAC and process control.

  • Protection against construction site pollution
  • Fast installation via flange or  immersion well
  • Suitable for accurate temperature measurement in liquids
  • Optional display available with analogue output

The measured data is available on the voltage or current output, as well as on the RS485 interface with Modbus RTU. Alternatively, the EE431 features a passive output with a wide choice of temperature sensing elements.

The device can be mounted either with the plastic mounting flange or via external mounting holes at the enclosure. The innovative immersion well is dedicated for measurement in liquids and allows for fast and safe replacement of the sensor. The EE431 with RS485 interface is appropriate for daisy-chain wiring.

An optional adapter and the free EE-PCS Product Configuration Software facilitate the setup and adjustment of the EE431.

Enclosure

  • IP65 / NEMA 4X
  • External mounting holes
  • Bayonet screws

Mounting flange

  • Clamp ring
  • Special seal

Immersion well

  • Innovative mounting spring

EXTEND YOUR WARRANTY UP TO 5 YEARS WITH THE NEW
E+E CALIBRATION SERVICE PACKAGES

Our calibration service packages ensure that you are on the safe side when it comes to the accuracy and vailability of your measuring devices. Choose the right service package for your E+E product and benefit rom professional device service, calculable costs and excellent measuring accuracy in the long-term. Here you can find more detailed information.

We are always available to answer any questions you may have! Inquire now
Measuring Range: Duct sensor (probe tip)
-40...+110 °C (-40...230 °F)
Measuring Range: immersion well (probe tip)
-40...+130 °C (-40...+266°F)
Accuracy active output
±0.1 °C (±0.18 °F)
Analogue output
0-10 V or 4-20 mA (2-wire)
Digital interface
RS485 with Modbus RTU
Protection class
IP65 / NEMA 4X
Supply
24 V AC/DC
You want to know more about our products? Inquire now

FAQ

Transmitter with "two-wire" technology receive the power from the process, and the signal is carried on return wire (closed current loop). With "three-wires" technology the power supply is separate from current output: 2 wires are the power supply and the third carries the signal.
