Temperature Sensor with Remote Probe

  • Service
  • Temperature

EE471

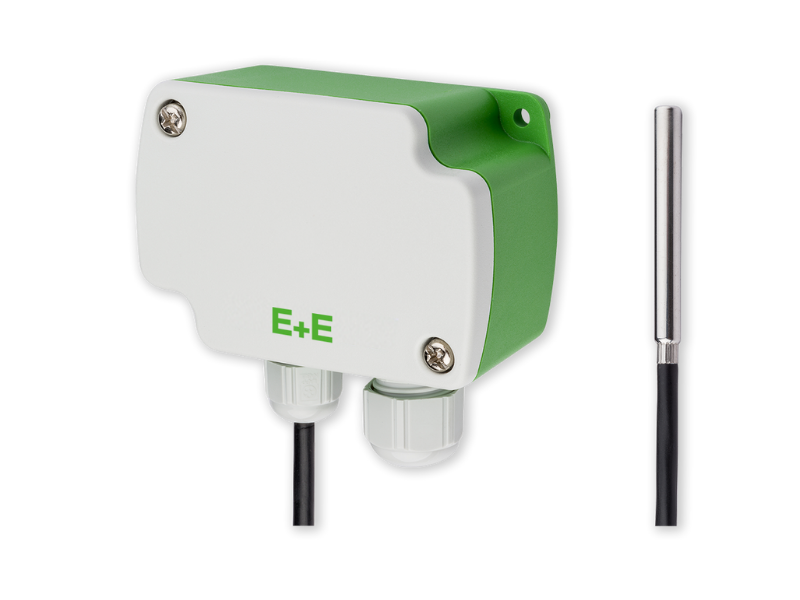

The EE471 temperature sensor with remote probe reliably measures the temperature (T) in applications with space restrictions and is optimized for building automation, HVAC and process control.

The measured data is available on the voltage or current output, as well as on the RS485 interface with Modbus RTU. Alternatively, the EE471 features a passive output with a wide choice of temperature sensing elements.

The design with remote probe is appropriate for installations where electronic shall be protected against high temperature or strong vibrations. The innovative immersion well is dedicated for measurement in liquids.

An optional adapter and the free EE-PCS Product Configuration Software facilitate the setup and adjustment of the EE471.

Enclosure

  • IP65 / NEMA4
  • External mounting holes
  • Bayonet screws Probe
  • Product specific information printed on the cable
  • IP67 cable outlet (star pressing of the sensor sleeve)

EXTEND YOUR WARRANTY UP TO 5 YEARS WITH THE NEW
E+E CALIBRATION SERVICE PACKAGES

Our calibration service packages ensure that you are on the safe side when it comes to the accuracy and vailability of your measuring devices. Choose the right service package for your E+E product and benefit rom professional device service, calculable costs and excellent measuring accuracy in the long-term. Here you can find more detailed information.

We are always available to answer any questions you may have! Inquire now
Operating temperature
remote probe: -30...105 °C (-22...221 °F)electronics: -30...70 °C (-22...158 °F)
Accuracy active output
±0.3 °C (±0.54 °F)
Analogue output
0-10 V or 4-20 mA
Digital interface
RS485 with Modbus RTU
Protection class
IP65 / NEMA 4
Supply
24 V AC/DC
You want to know more about our products? Inquire now

FAQ

Transmitter with "two-wire" technology receive the power from the process, and the signal is carried on return wire (closed current loop). With "three-wires" technology the power supply is separate from current output: 2 wires are the power supply and the third carries the signal.
