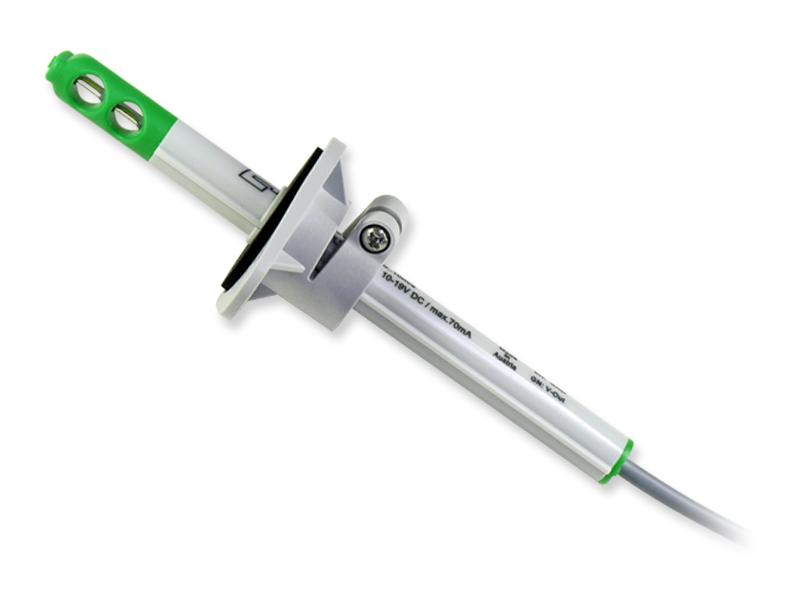

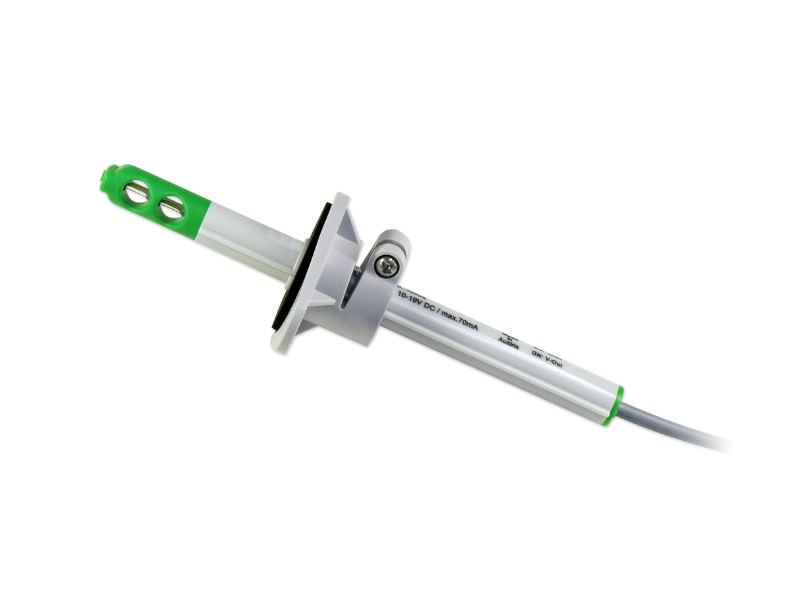

The compact EE576 probe is optimized for low air velocity measurement in applications like laminar flow control or filter monitoring. It operates on the hot-film anemometer principle which stands for high accuracy and fast response time. The the flow sensing element manufactured in state-of-the-art E+E thin-film technology is highly insensitive to contamination and offers excellent long-term stability.
Equipped with a newly developed sensor head and utilizing the proven E+E hot-film element, already tested a million times in the automotive industry, these transmitters are less sensitive to dust and dirt than conventional hot-wire elements.
This is reflected in the excellent reproducibility and proven long-term stability of the measuring results. The factory calibration with a special wind tunnel for lowest velocity ensures optimal precision and maximum sensitivity. The EE576 can be mounted fast and easily.
The alignment strip along the probe’s tube and the matching mounting flange determine the orientation of the sensor probe. The mounting flange allows for an infinitely variation of the depth of the sensor probe. The electronics integrated in the probe tube provide a linear analogue signal of 0-5V or 0-10V for the velocity range 0...2m/s (0...400ft/min) or 0...1m/s (0...200ft/min).
We are always available to answer any questions you may have!Inquire now
Measuring range
0...2m/s (0...400ft/min)0...1m/s (0...200ft/min)
Accuracy
0.2... 1m/s: ±(0.05m/s (10ft/min) +2% of MV)0,2... 2m/s: ±(0.08m/s (16ft/min) +4% of MV)
Outputs
0-5V or 0-10V
Supply
10-19V DC or 19-29V DC
