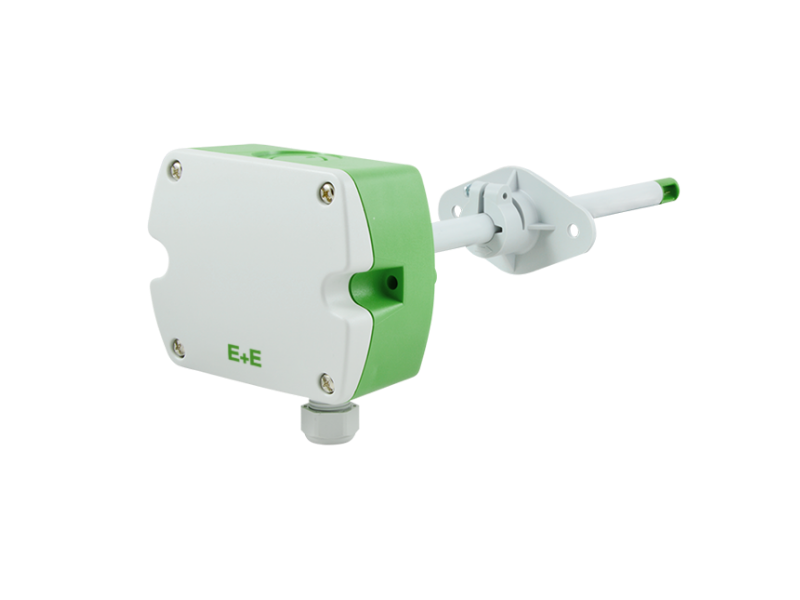

EE650 employs the new VTQ air flow sensor element, which operates on the thermal anemometer principle and is manufactured by E+E in state-of-the-art thin film technology.
Due to its innovative design, the VTQ air flow sensor element is very robust and highly insensitive to pollution, which leads to outstanding long-term performance.
The measured data is available either on an analogue voltage or current output, user selectable, or on the RS485 interface with Modbus RTU protocol.
The enclosure design and the mounting flange included in the scope of supply allow for easy installation or replacement. The configuration and adjustment of the EE650 can be comfortably performed on the electronics board or via digital interface.
Typical Applications
HVAC
Ventilation systems
Process control
We are always available to answer any questions you may have!Inquire now
Best accuracy and long term stability
High resistance to pollution and mechanical stress
Measuring range 0.2 - 10/15/20 m/s (40 - 2000/3000/4000 ft/min), user selectable
Current and voltage outputs, selectable
RS485 interface with Modbus RTU
Duct mount and remote probe versions
Easy installation
Digital interface for adjustment by user
Measuring range - user selectable
0...10 m/s (0...2000 ft/min)0...15 m/s (0...3000 ft/min)0...20 m/s (0...4000 ft/min)
Accuracy at 20 °C (68 °F), 45 % RH, 1013 hectopascal
0.2...10 m/s ±(0.2 m/s + 3 % of mv)0.2...15 m/s ±(0.2 m/s + 3 % of mv)0.2...20 m/s ±(0.2 m/s + 3 % of mv)
Response time - user selectable
typ. 4 sec or typ. 1 sec.
Output Analogue
0-10 V and 4-20 mA
Output Digital
Modbus RTU
Supply
24 V AC/DC
You want to know more about our products?Inquire now
Rijin Raj, Regional Sales Manager at E+E Elektronik India Pvt. Ltd.
Sensors play a crucial role in mobility applications for safety, efficiency, and performance. At E+E Elektronik, our cutting-edge sensor technology provides accurate data, enabling customers to optimize vehicle functionality and stand out in the dynamic mobility market.
FAQ
Transmitter with "two-wire" technology receive the power from the process, and the signal is carried on return wire (closed current loop). With "three-wires" technology the power supply is separate from current output: 2 wires are the power supply and the third carries the signal.
