The EE741 in-line flow meter can be easily adapted for any measuring task. It is dedicated for accurate metering and monitoring of compressed air and technical gases in DN 15 to DN50 pipes.
The thermal measuring principle and the well proven E+E hot film sensor element lead to best long-term stability and fast response time.
Outstanding measuring accuracy, even in the lower measuring range, is achieved by an application-specific multi-point factory adjustment performed at 7 bar (102 psi). This allows reliable leak detection and corresponding energy savings. The construction of the EE741 flow meter is optimised for easy installation and maintenance.
Modular design

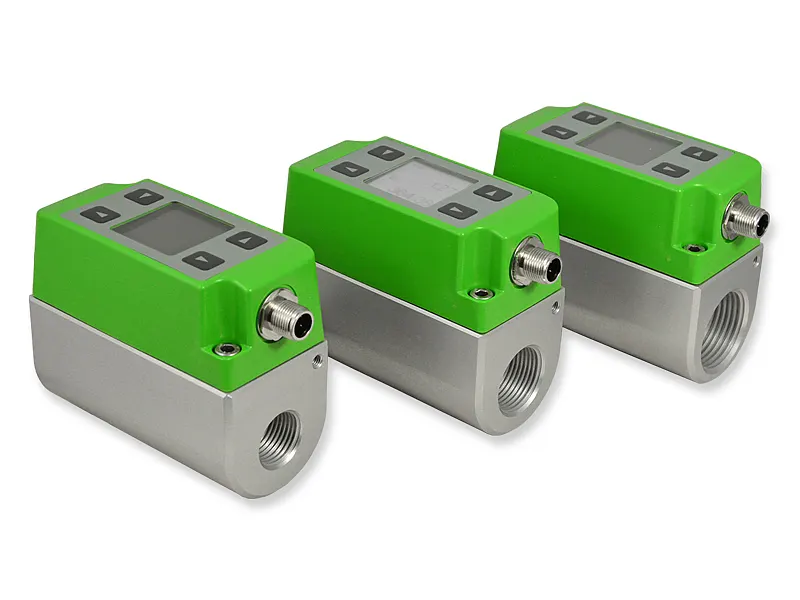

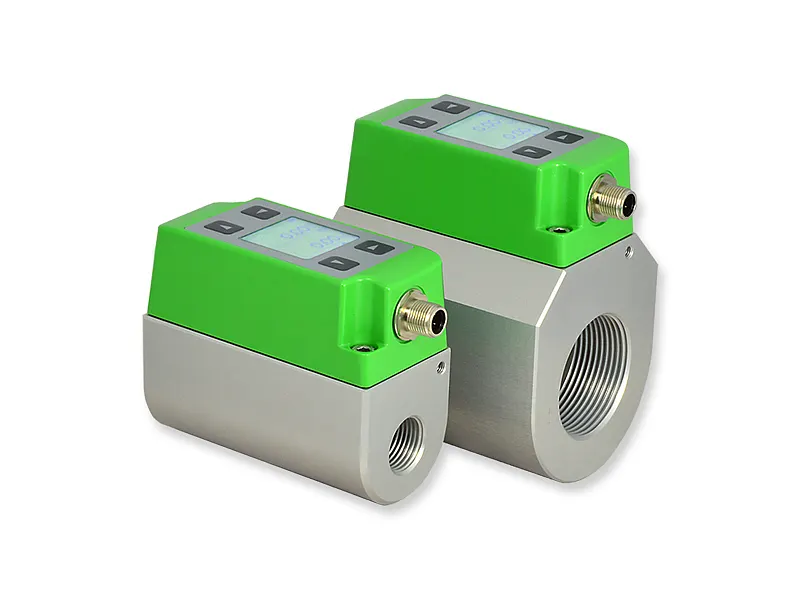

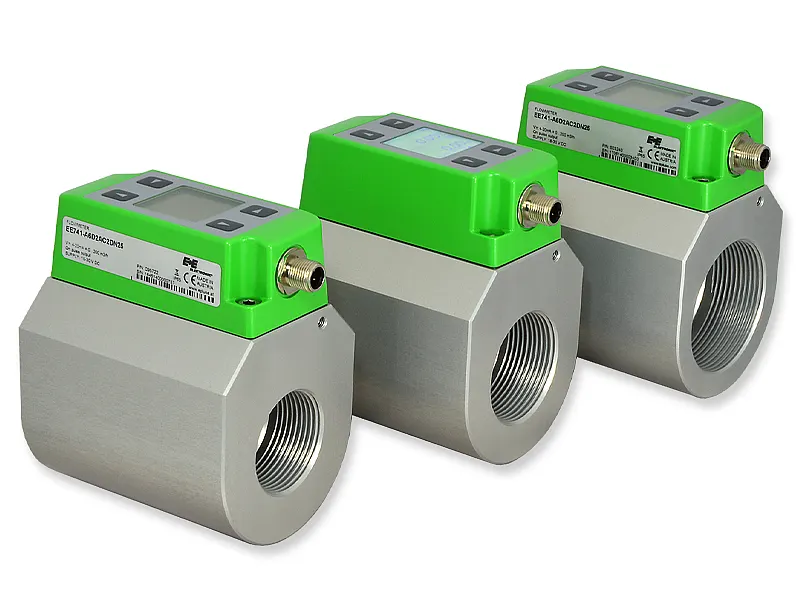

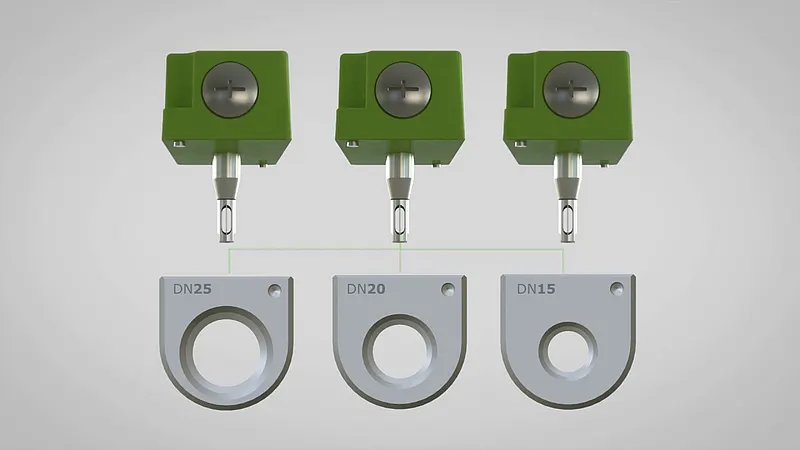

One and the same transmitter can be used for each of three pipe diameters:
The pipe diameter is easily set via the display menu or the EE-PCS product configuration software.

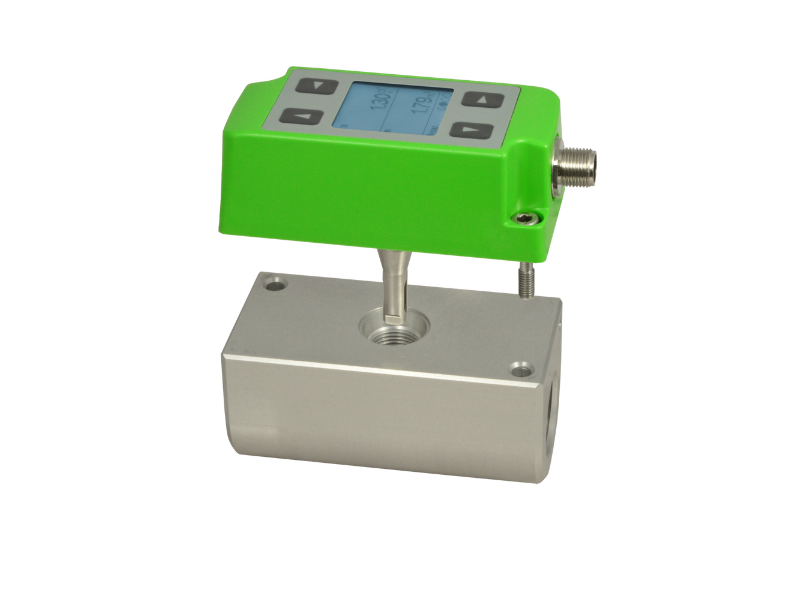

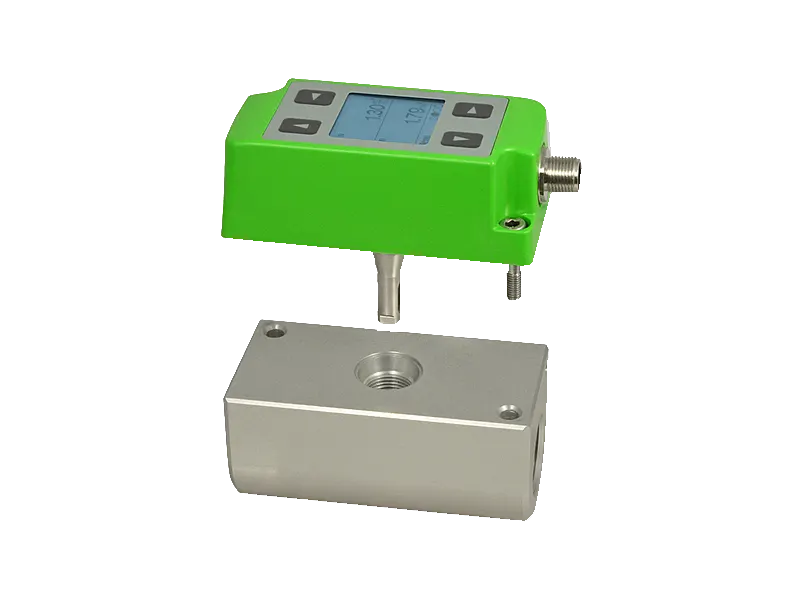

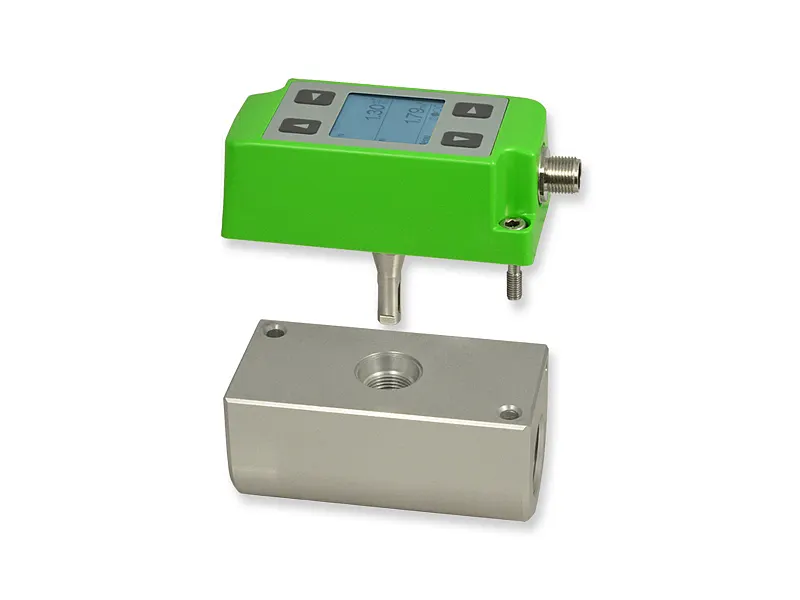

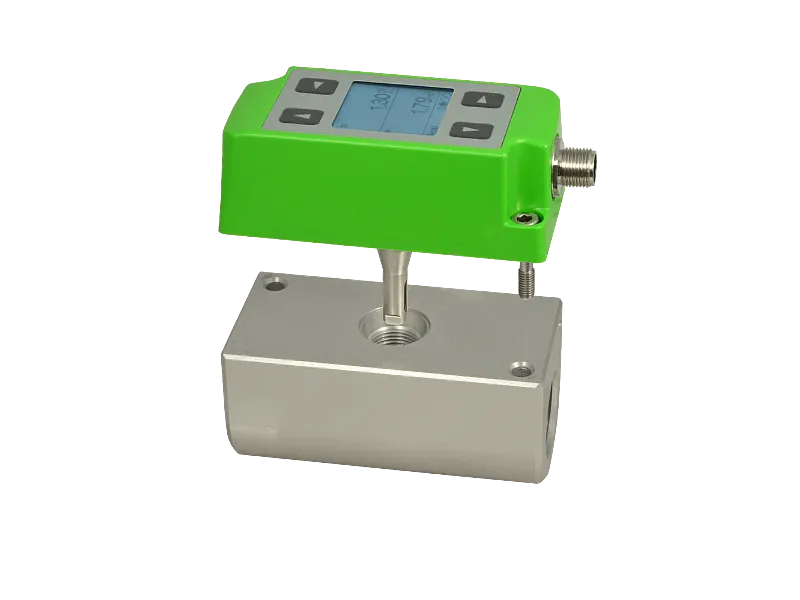

Once the gauge mounting block is installed in the pipeline, the transmitter can be installed and removed without any pipework. As a result, the EE741 flow meter is also ideal for temporary measurement at several installed mounting blocks. The sealing plug included in the scope of supply enable the normal operation of the compressed air system when the transmitter is removed.

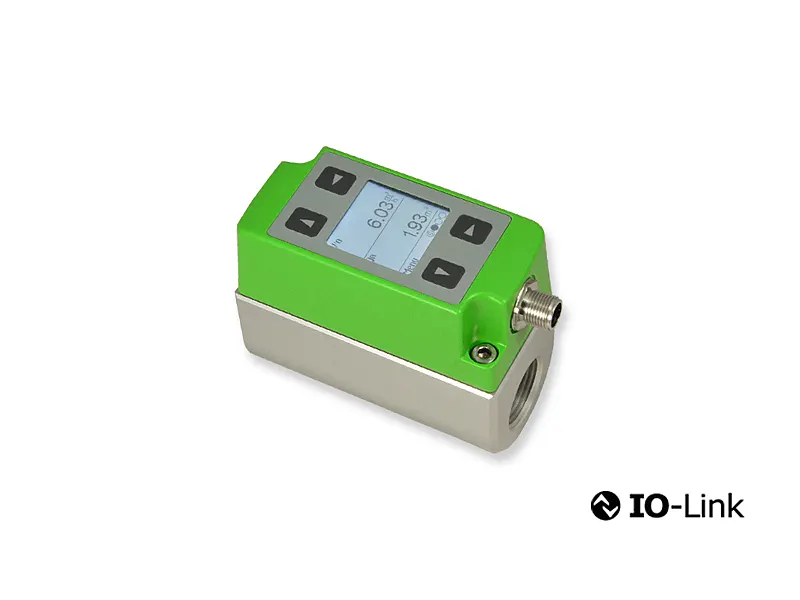

Display (optional)
The state-of-the-art LCD shows the current measured values and the overall consumption. The EE741 setup can be easily performed with the push buttons and intuitive menu guidance. The display can be rotated in 90° increments with a push button for convenient orientation in any mounting position of the flow meter.
Typical Applications
Compressed air consumption measurement
Monitoring of technical gases O2, N2, Ar, CO₂. Other gases upon request
Nitrogen generators
Leak detection
We are always available to answer any questions you may have!Inquire now
Modular design
Removal without dissasembling the pipework
Application-specific adjustment under pressure
Exceptional price/performance ratio
Analogue, pluse and switching output
Modbus RTU and M-Bus
Integrated consumption meter
Measured values
standardized volumetric flow, mass flow, standardised flow, temperature, consumption
0/4-20 mA, Pulse, Switch, Modbus RTU, M-Bus or IO-Link
Supply
18 - 30 V DC
You want to know more about our products?Inquire now
For the use of this service, prior consent to the processing of your data and in particular to the setting of cookies is necessary. You can consent to the processing and setting of cookies here. Without your consent, your data will not be processed in connection with this service and no cookies will be set. You can revoke your consent at any time. For more information on cookies and the processing of your data in connection with this content and a way to revoke your consent, please see our privacy policy.
Nam Seung Baeg, HLeng
We use the EE355 and TDS501 dew point sensors in dehumidifiers and air dryers for battery and semiconductor applications. Their stable, highly accurate measurements, competitive pricing and reliable local support make E+E Elektronik a trusted partner for us.
FAQ
When the value exceeds 99,999.99 (m3 or ft3), the display reduces the character size and the value shows only one decimal instead of two. When the value exceeds 1,000,000,000.0 (m3 or ft3), the display shows ‘LCD maximum’.
