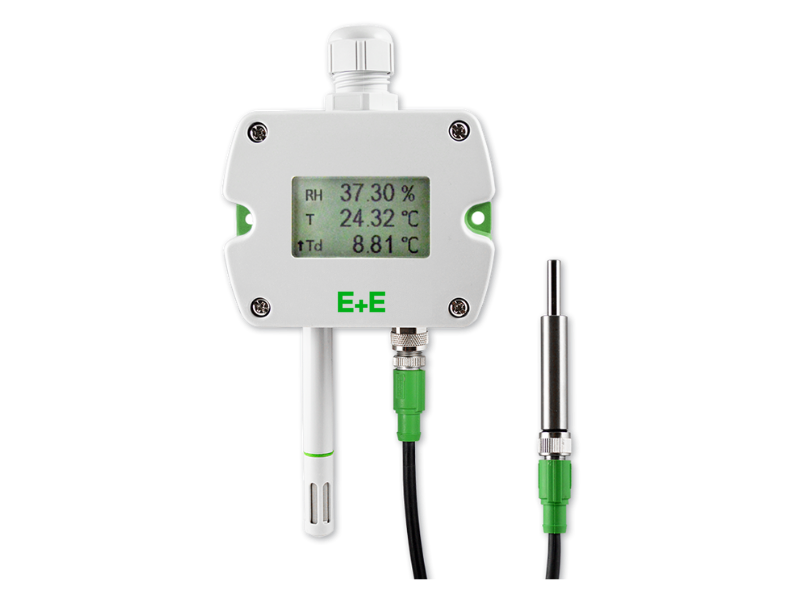

Humidity and Temperature Sensor for Continuous High Humidity
EE211
The EE211 humidity and temperature sensor is dedicated for accurate and long-term stable measurement in continuous high humidity (>85 % RH) and condensing environments. It features a heated RH sensor and a replaceable temperature probe.
Reliable performance in high humidity and condensing conditions
Heated RH sensor and hot-swappable temperature probe
Durable IP65 / NEMA 4X housing with E+E sensor coating
Modbus RTU + analogue outputs; easy setup via USB and PCS10
It features a heated humidity probe and an interchangeable temperature probe. Excellent performance of EE211 even in polluted, aggressive environment is ensured by the combination of completely encapsulated measurement electronics inside the humidity probe and the long-term stable HCT01 sensor with E+E proprietary Sensor coating.
The EE211 enclosure is rated IP65/NEMA 4, minimizes installation costs and provides outstanding protection against pollution and condensation. All measured and calculated values are available on the Modbus RTU interface whereas two of the values are available on the analogue voltage or current (3-wire) output. Additionally up to three values can be shown simultaneously on the optional illuminated display.
With the optional USB configuration adapter the user can set the Modbus RTU interface parameters, the display format, the measured parameters and the output scaling. Furthermore, the user can perform an one or two point humidity and temperature adjustment. The T probe can also be adjusted separate, whereby the reference can be a high accuracy dry block calibrator.
We are always available to answer any questions you may have!Inquire now
External mounting holes
Display: shows up to 3 measurands
Enclosure: IP65 / NEMA4X
Electronics on the bottom of the PCB: Optimum protection against mechanical damage during installation
Heated sensing head: Best performance and long term stability under continious high RH and condensing conditions
Separate T probe EE07-M3HS2
Smooth cover surface: no accumulation of dust in protruding edges
Measuring range - Humdity
0...100% RH
Measuring range Temperature
-40...+60 °C (-40...+140 °F)
Sensing Element
E+E proprietary coating heated for high humidity operation
Analogue outputs
0-5V / 10 V 0-20mA / 4-20 mA
Digital Interface
Modbus RTU
Accuracy - Humdity
-5...+30 °C (23...86°F) / ±(1.3+0.007*mv°)% RH)
Accuracy Temperature
at 20°C (68°F)
You want to know more about our products?Inquire now
Nam Seung Baeg, HLeng
We use the EE355 and TDS501 dew point sensors in dehumidifiers and air dryers for battery and semiconductor applications. Their stable, highly accurate measurements, competitive pricing and reliable local support make E+E Elektronik a trusted partner for us.
FAQ
Transmitter with "two-wire" technology receive the power from the process, and the signal is carried on return wire (closed current loop). With "three-wires" technology the power supply is separate from current output: 2 wires are the power supply and the third carries the signal.
